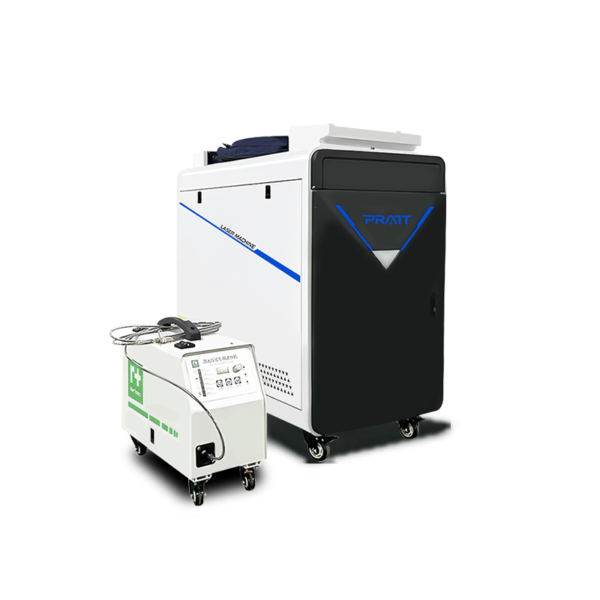

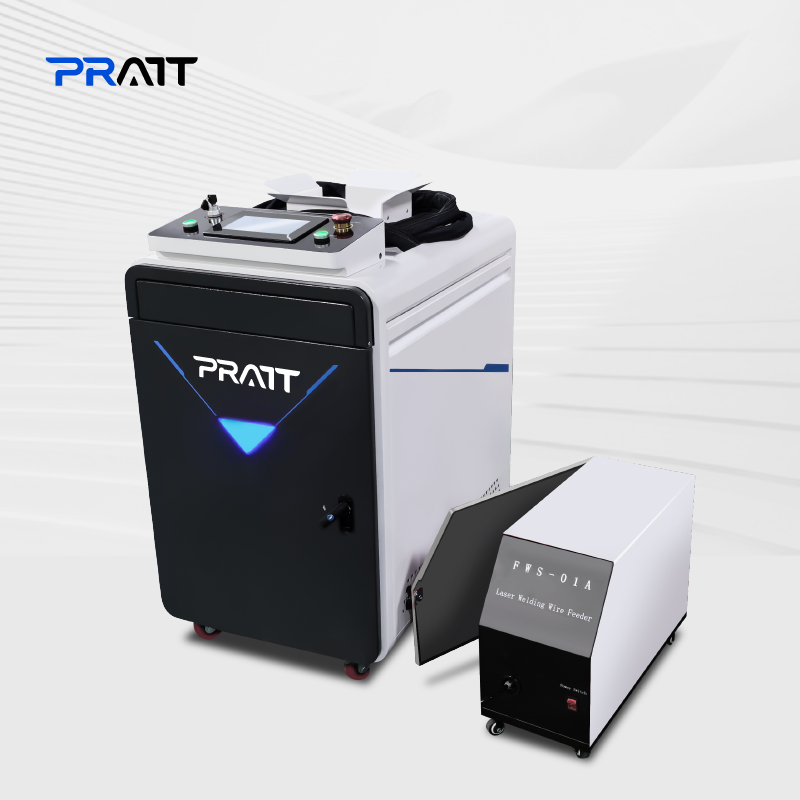

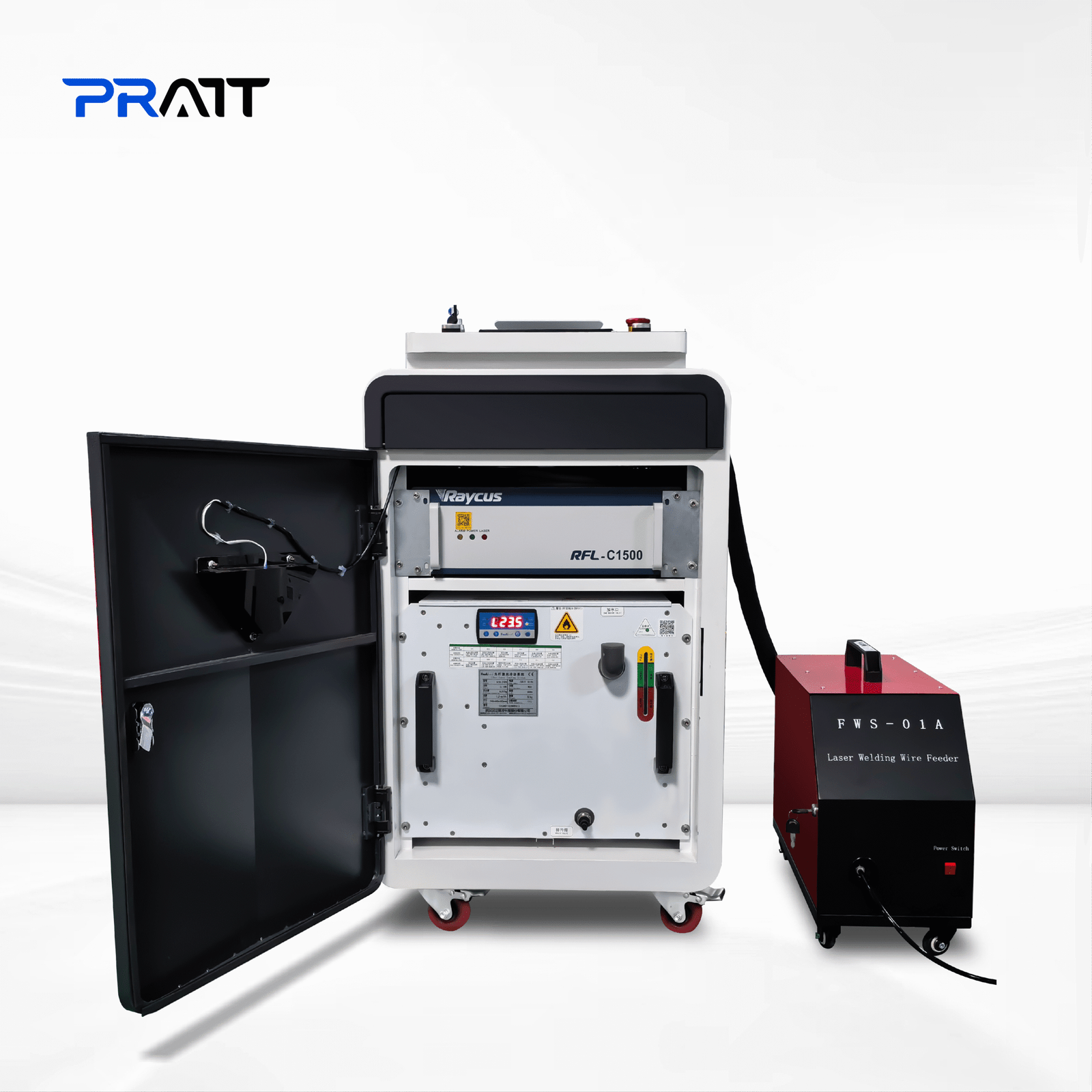

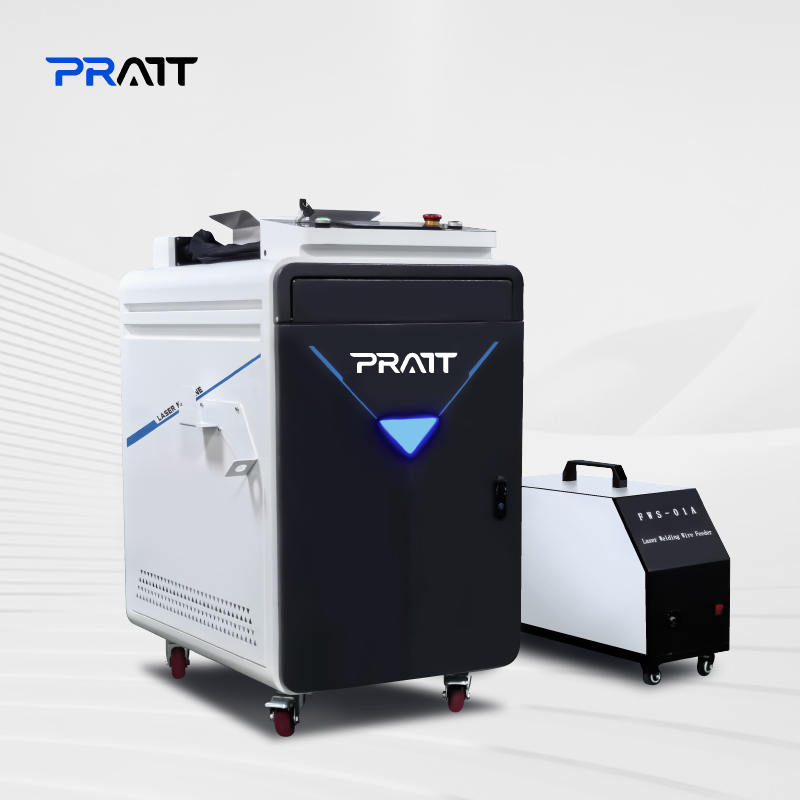

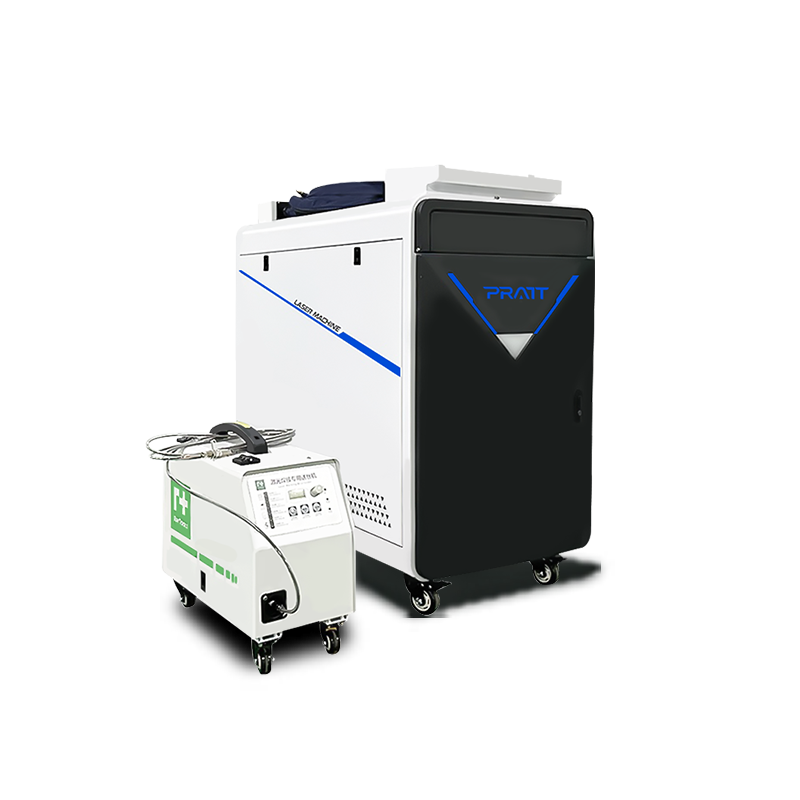

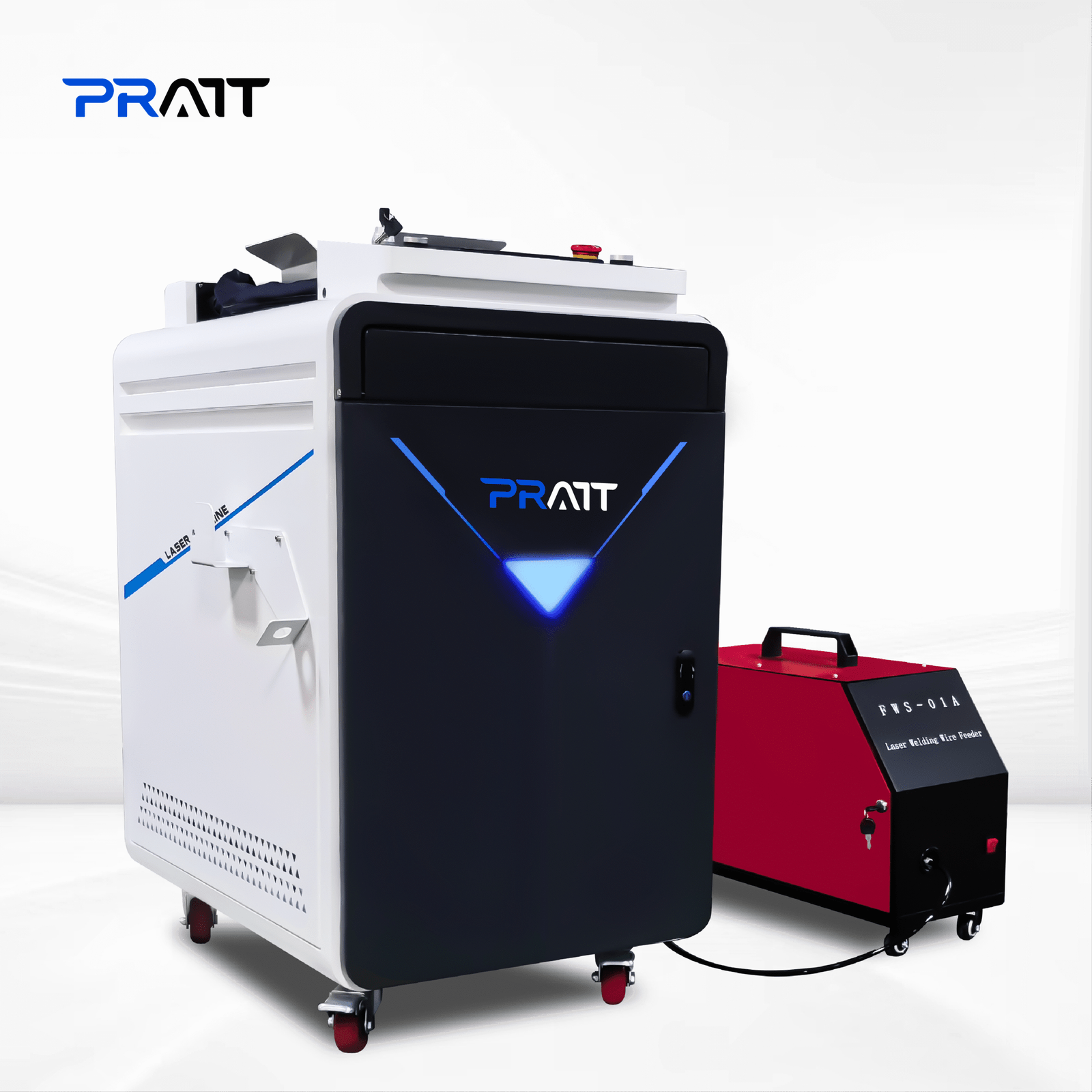

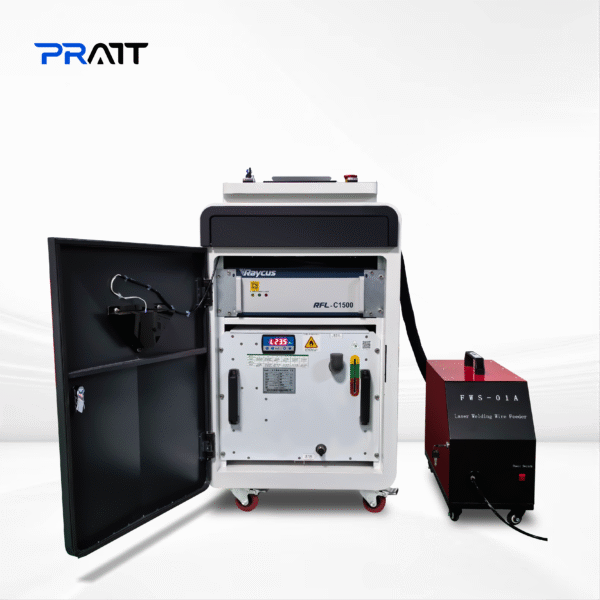

Laser welding machine is a device that uses laser to weld metal materials together, such as stainless steel, carbon steel,aluminum and other metal materials. It is suitable for precision welding and large thickness metal welding, and it is widely used in electronic components, cars, medical treatment, aerospace and other fields.Laser cleaning machine utilizes laser technology to remove pollutants, oxides, coatings, and other contaminants, chineving functions such as cleaning, decontamination, and surface treatment.
Model | PRW1000CW | PRW1500CW | PRF2000CW | PRF3000CW |
Laser Power | 1000W | 1500W | 2000W | 3000W |
Welding depth (SS) | 2.68mm | 3.59mm | 4.57mm | 6.87mm |
Welding depth (CS) | 2.06mm | 2.77mm | 3.59mm | 4.79mm |
Welding depth (Al) | 2mm | 3mm | 4mm | 6mm |
Feeding Wires’ Dimenson | 0.8-1.2 wire | 0.8-1.6 wire | 0.8-1.6 wire | 0.8-2.0 wire |
Max Cleaning Width | 40mm | 40mm | 40mm | 40mm |
Laser Wavelength | 1070 +/-10 nm | 1070 +/-10 nm | ||
Laser Frenquency | 50-5000HZ | 50-5000HZ | ||
Position System | Red Light Indicator | Red Light Indicator | ||
Power Adjustment | 10-100% | 10-100% | ||
Cooling Method | Water Chiller | Water Chiller | ||
Spot Size | 1.2-3.0mm (option) | 1.2-3.0mm (option) | ||
Power Instability | <3% | <3% | ||
Shielding Gas Flow | 15-20 L/min (Ar Or N) | 15-20 L/min (Ar Or N) | ||
Power Supply | 220V 50&60HZ | 380V /50&60HZ | ||
Size(L*W*H) CM | 90*40*70 | 90*40*70 | 115*65*87 | |
Net Weight | 160KG | 170KG | 180KG | 220KG |
Total Power Consumption | ≤3KW | ≤4.5KW | ≤6KW | ≤9KW |
The advantafe of Pratt CNC Laser Welding Machine
1. Flexible for welding/cutting/cleaning work-piece with an optical fiber up to 8-10 m.
2. The weld seam is smooth with nice appearance, no grinding or only a little grinding.
3. Applicable to a variety of welding processes, including spot welding, seam welding and overlap welding.
4. A contact-less cleaning for metal rust removal, paint removal, oil grease dirt removal.
5. Easy cut on metal for optional using.
6. With Use program-controlled robot can weld sharp parts with specific routine, can cut metal in specific shape.
7. It’s simple and easy to handle, and do not need a traditional professional welder.
8. Do not need wear face-mask instead of wear the laser protective goggles. 9. Low use-cost. Low power consumption, low gas consumption and low lens consumption.
Laser Weilding
Laser Cleaning
Laser Cutting
This machine adopts fiber laser to make welding/cutting/cleaning with four-in-one welding head. 4 in 1 welding head integrates the four functions in one system. The system can make switch freely according to different application scenarios, providing diversified solutions for users’ different application require-ments. It’s suitable for a welding base, cleaning required and simple cutting.
